Forged Link Standard Type For Sugar Mills
We are constantly striving to manufacture and supply our clients with a premium quality range of Forged Link Standard Type For Sugar Mills. These forged links are manufactured using high-grade raw materials and advanced forging techniques to deliver exceptional strength, durability, and reliable performance in demanding sugar mill operations.
Features:
- Heavy-Duty Construction
- High Tensile Strength
- Wear & Abrasion Resistant
- Corrosion Resistant Finish
- Excellent Load Bearing Capacity
Our Forged Link Standard Type For Sugar Mills are widely used in sugar mills, conveyor systems, material handling equipment, and various industrial machinery applications. Manufactured under strict quality control standards, these forged links ensure smooth operation, high efficiency, and dependable performance.
Material: EN-8D, EN-9, 16mncr5
HRD/TEM=250-300 BHN

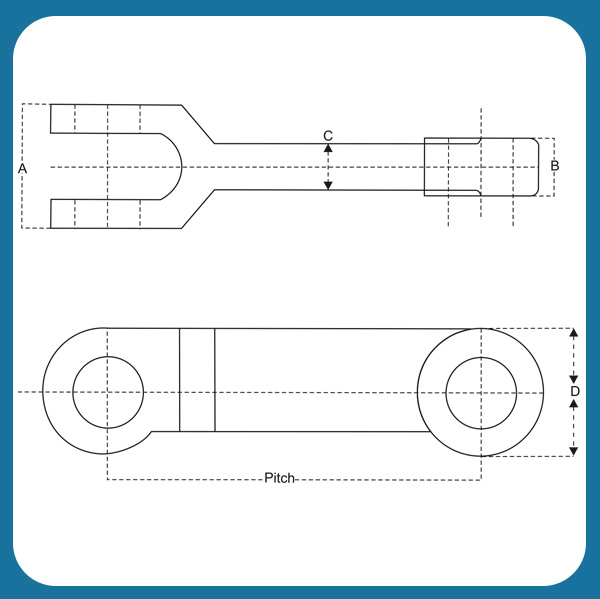

Product Specification
| Drawing No | Pitch | A | B | C | D |
|---|---|---|---|---|---|
| RAF 011/229 | 229 | 62 | 30 | 22 | 70 |
| RAF 006/229 | 229 | 71 | 34.5 | 28 | 70 |
| RAF 012/229 | 229 | 76 | 34.5 | 28 | 80 |
| RAF 019/229 | 229 | 85 | 40 | 30 | 85 |
| RAF 020/229 | 229 | 94 | 47 | 28 | 85 |
| RAF 007/300 | 304.8 | 130 | 51 | 40 | 100 |
